[Error Code] Canon iR2880i E748-4311

[Jamesu]

Hey all,

Firstly before i begin i have already done a search and found this thread: http://www.copytechnet.com/forums/ca...-ir-c2880.html although it is showing the same idea i had, it hasnt worked. Anyway...

I've been working on a iR2880i on and off for a few weeks now, the story is this.

The machine was working perfectly, tested, everything was fine. We then delivered it to our customer over 100 mile away and since it has been there it has had E748-4311.

In this order i have:

1. Re-seated all board connecting to the Main Controller
2. Re-seated all wired connecting to the Main Controller
3. Swapped all boards for another set on the Main Controller
4. Swapped the entire Main Controller cage with an old (but working) back up machine (I remembered to swap the counter boards too)
5. Cleared and Re-installed all system software
6. Cleared all error codes and reset the machines memory

I have no idea what else to do with this machine as i understand E748-4311 points in the direction of the Main Controller - if i have changed the entire thing (twice) what more can i do?

Any help would be very much appreciated!

Thanks!

[teckat]

Re: Canon iR2880i E748-4311

Connection issue somewhere/

this pdf applies to all iR'S regardless of models listed or codes listed

procedure solves the weird issues 95% of the time

TP07.pdf

[Jamesu]

Re: Canon iR2880i E748-4311

Thanks you so much for your reply.

Although the PDF is useful, I have already cleaned, reseated and even changed all PCB boards. I've even gone the route of changing the entire cage.


I got that frustrated yesterday I even went down the road of changing the entire left hand cage with both boards (DC-Controller?)

Thanks for the help!

[teckat]

Re: Canon iR2880i E748-4311

post a picture of the boards seated/

I want to see what can be removed /to test the start up without them

[Jamesu]

Re: Canon iR2880i E748-4311

I shall post a photo on Monday/Tuesday as I am not in the office over the weekend!

Thanks so much for the help though! I'd be clicking the like button but it doesn't work on my phone for some reason!

[Jamesu]

Re: Canon iR2880i E748-4311

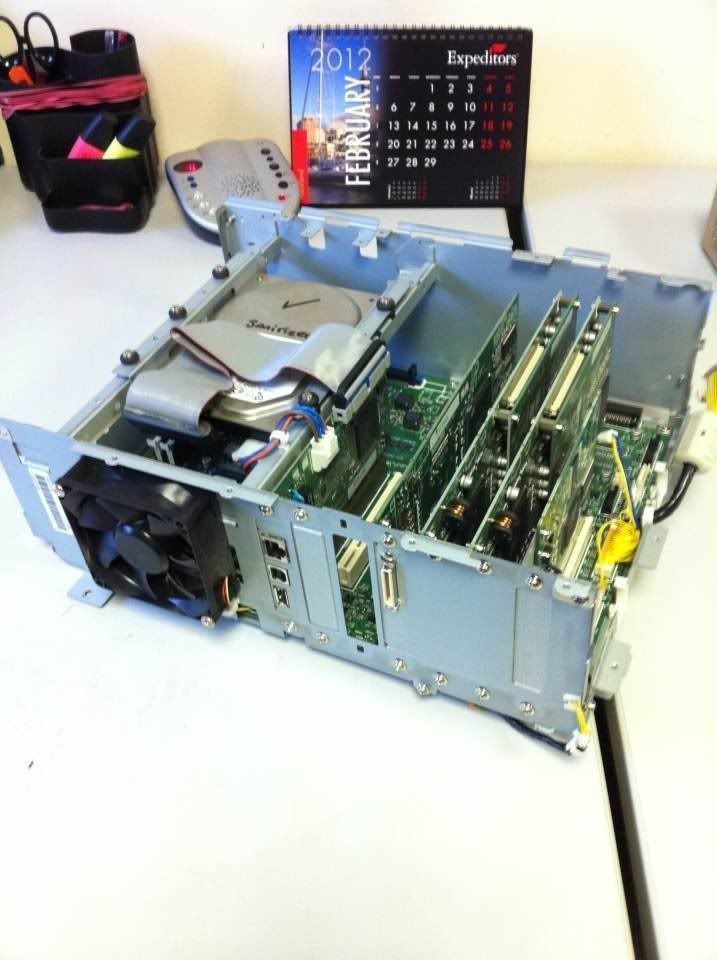

Just been through images on my phone and I came across this. Hope this helps.

[teckat]

Re: Canon iR2880i E748-4311


From the top down

#30-1-R-A PCB ASSEMBLY or OPEN INTERFACE PCB
#31/32-2-PDRM-EF-A PCB ASS'Y(S) = two of these
#33-3-SJ-A PCB ASSEMBLY
#35--??? LANBAR-C PCB ASSEMBLY - is this out

#34--???-RB-A2 PCB ASSEMBLY/ on side



[Jamesu]

Re: Canon iR2880i E748-4311

Yes I believe it is out...

This is a cage I took to the customer to replace. This didn't work. The one in it didn't work. And I've tried a 3rd cage which isn't working either! All the same error code. Could this be a problem to do with the DADF??

[teckat]

Re: Canon iR2880i E748-4311

Yes I believe it is out...

This is a cage I took to the customer to replace. This didn't work. The one in it didn't work. And I've tried a 3rd cage which isn't working either! All the same error code. Could this be a problem to do with the DADF??

this error has nothing to do with DADF

Do u Have the RB-A board that goes in that vertical slot behind the HDD ????

SHOWN WITH HDD REMOVED


E748-4311 is an error in the detection of the Sub RB-A board, which is located to the left of the hard drive

[2] Main controller PCB (sub RA)=color space conversion, rotation for electronic sorting, binary
processing, resolution conversion
[3] Main controller PCB (sub PDRM-EF-A)= image processing for printer output (color space compression, background removal, LOG conversion, direct mapping, color balance, zoom fine adjustment, gradation conversion, screen processing, framing, add-on)
[4] Main controller PCB (sub SJ-A)= scanner interface, scanner image processing (resolution conversion, image rotation, compression/expansion)
[5] Main controller PCB (sub LAN-bar-A)= LAN connection, HDD controller, HDD power supply
[6] Boot ROM stores programs used for booting
[7] SRAM PCB retains service mode settings and HDD control information
[8] DDR-SDRAM retains program data and image data temporarily
[9] Main controller PCB (sub RB-A)=(to be translating)
HDD HDD stores system software, retains image data for Box/fax functions



[Jamesu]

Re: Canon iR2880i E748-4311

Yes I have both of those. I shall try swapping them around on Monday!

[teckat]

Re: Canon iR2880i E748-4311

Yes I have both of those. I shall try swapping them around on Monday!

U keep swapping out PCB's / what was the original configuration of the printer that has the error code ?
do you have it's config page ??

did it have a Fiery connected or a Color PS Printer Kit (activated) key by LMS License
Color PS Printer Kit and imagePASS cannot be used together-

[Jamesu]

Re: Canon iR2880i E748-4311

It didn't have a fiery.

The story goes, i went to the customer to install their new copier, we had it tested and working in the office. I set up the copier and got them printing to it all fine.

Went home and soon after got called back in for a problem not relating to this error code. I restarted the machine and i've had this error code ever since.

I have swapped the DC Controller already on Friday with an old (but working) machine.

Due to swapping the DC Controller i have had to unplug all connections.

I don't have the config page unfortunately.

I'm not in the office again until tomorrow afternoon so i'll be having a mess around with the machine again, where i'll try disabling the scanner.

Thank you all for the help! So happy i found this forum!!

[Jamesu]

Re: Canon iR2880i E748-4311

I believe it was to change the yellow laser as copies were coming out mis-aligned, but dont hold me to this! I cant think of anything else i must have gone for!

[Jamesu]

Re: Canon iR2880i E748-4311

I have checked that, almost certain of it. But i shall check again tomorrow! As long as it gets this copier working again i'll have it in bits!

The best thing is, I only want it fixed to replace an old 3200 thats in the office! This 2880i has iSend which the 3200 doesn't...

Thank you so much for your help! I'll check tomorrow and let you know!

[teckat]

Re: Canon iR2880i E748-4311

I have checked that, almost certain of it. But i shall check again tomorrow! As long as it gets this copier working again i'll have it in bits!

The best thing is, I only want it fixed to replace an old 3200 thats in the office! This 2880i has iSend which the 3200 doesn't...

Thank you so much for your help! I'll check tomorrow and let you know!

when u swap DC pcb's u need to consider the original settings / and any LMS keys activated /

I would put back all the original PCB's in the printer /

are u a trained Canon tech on this series ??/

reason asked> is why would u go in and change the Y laser on a printer that was working before/
& why don't u have the P PRINTS for this printer/
where are u getting the DCON settings to put back in these swapped DC controllers/


to me it seems that u created more of an issue then u originally had-

When a working printer is shipped from one location to another/ before my techs power it up>
they check all those inserted PCB's on Main C- to make sure nothing popped lose>

E748-4311 is an error in the detection of the Sub RB-A board, which is located to the left of the hard drive
